MIL-C-50735(MU)
8 August 1973

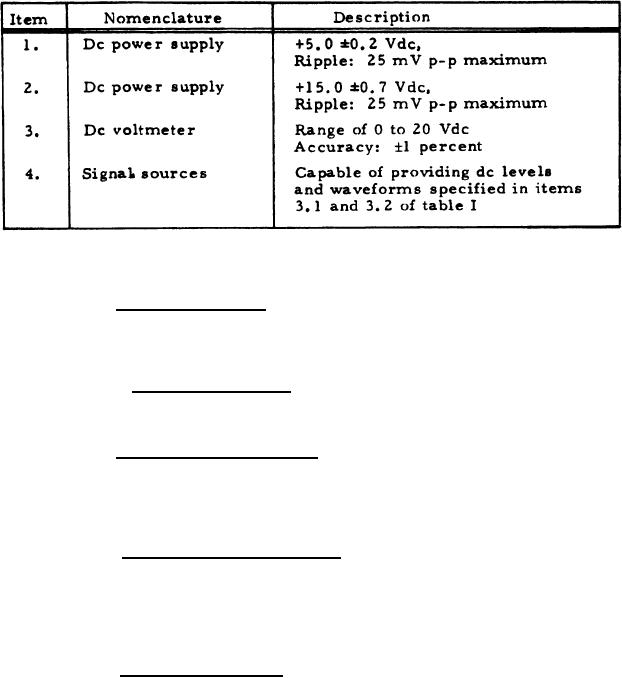

TABLE VIII
INSPECTION EQUIPMENT
4.6 Test methods and procedures
4.6.1 Test conditions. Unless otherwise specified, the test
conditions shall be in accordance with the test facilities provisions of
MIL-F-1 3926.
4.6.1.1 Initial conditions. Connect the loads and power to the
assembly as specified in table I.
4.6.2 Range light drive test. Apply the digital type-A signal
(item 3.1) of table I to P1-6, first at a Logical one level, then at a logical
zero level. Measure the output voltages at P1-23 for each input condition
to determine compliance with 3.3.1.1.
4. 6.3 M a n u a l r e s e t s i g n a l t e s t . with no input applied to P1-4
measure the output voltages at P1-21 and P1-22 to determine compliance
with 3.3.1.2. Apply the logical zero type-A signal (item 3.1) of table I
to P1-4. Measure the output voltages at P1-21 and P1-22 to determine
compliance with 3.3.1.2.
4.6.4 Turn-off rest test. Turn-off the +15 Vdc power at P1-5.
Measure the time interval between the +15-volt power turn-off and the
change in level of the reset voltage at P1-21. Measure the final voltage
level at P1-21. Verify compliance with 3.3.1.3.
14
