MIL-C-48605A (AR)

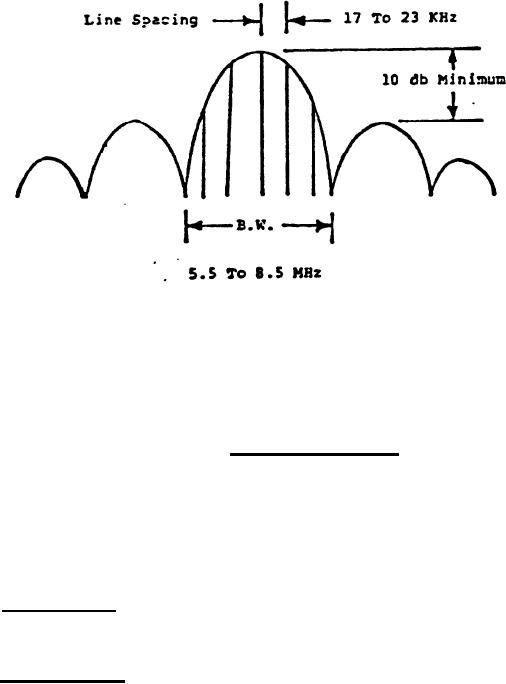

FIGURE 1. Pulse spectrum.
h. With the control assembly in the Pulse condition and the
FUNCTION SELECT switch in the RF INPUT position, the RF LEVEL
attenuator shall be capable of adjusting the self test signal such
that the digital display (DVM) reads +1000 ± 0.0020 for all positions
of theFREQ SELECT switch.
3.5.8 Cal input. The attenuation between the CAL IN port and
the CAL OUT port shall be less than 6 dB over the frequency reange
from 9.205 to 9.3245 MHz.
3.5.9 RF Monitor.
a. All requirements of 3.5.9 through 3.5.17p shall be
accomplished with 0 dBm (CW) measured at 1A22J2 with the RF LEVEL
control set to 5.
b. All requirements shall be met for all positional
combinations of the FREQ SELECT switch and the RANGE SELECT switch
unless otherwise indicated.
