MIL-C-48605A (AR)
j. For FREQ SELECT switch positions 9.205 and
9.245 only,
the target signal (CW) shall be attenuated referenced
to the TARGET
LEVEL attenuator dial over the dial range from 27 to
87 within the
accuracy requirements given in Table X. An internal
RF power
claibration (pulse) is not required.
TABLE X.
Target signal attenuation
DIAL READING IN dB
ROOM TEMP TOLERANCE IN dB
37
±1.5
47
±1.5
57
±1.5
67
±1.5
77
±1.5
87
±1.5
k. For FREQ SELECT switch in the 9.229 position only, with
the TARGET switch and the TARGET FREEZE switch in the positions
indicated, the target signal when envelope detected shall be as
indicated in Table XI.
TABLE XI. Target signal outputs.
TARGET SWITCH
TARGET FREEZE SWITCH
TARGET SIGNAL OUTPUT
OFF
OFF
None (less than 10%)
OFF
ON
None (less than 10%)
ON
OFF
Pulse (100% amplitude ref.)
ON
ON

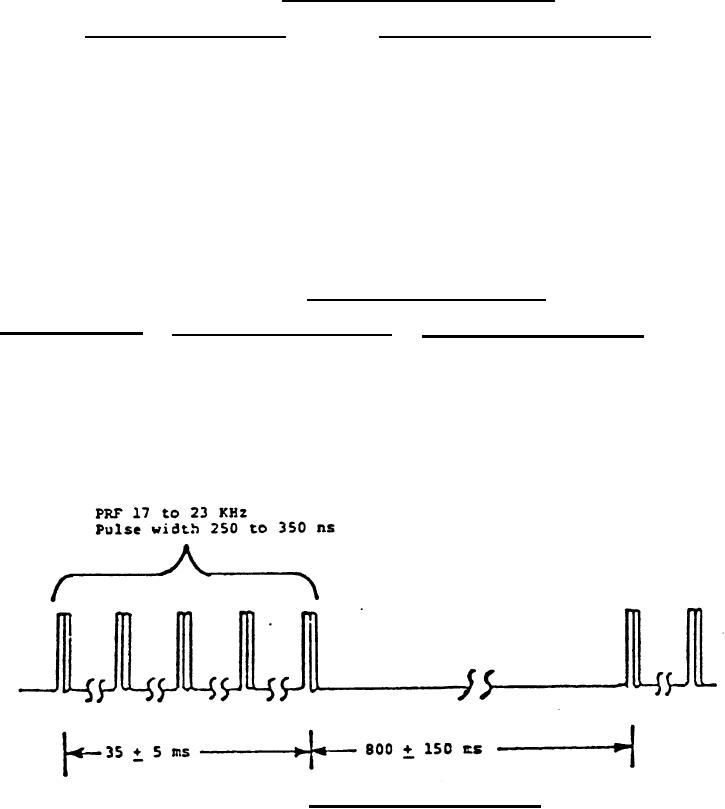

Figure 2
FIGURE 2. Target signal output.
14
